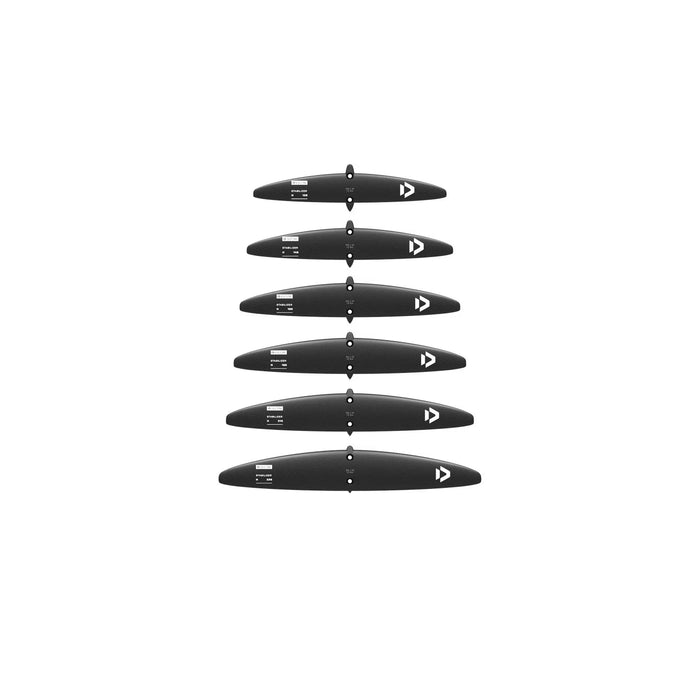

Duotone Stabilizer H Back Wing 2026
The Duotone Stabilizer H is a high-aspect foil back wing developed for efficient pumping, long glide and downwind foiling. Its straight outline and dedicated profile are designed to improve projection while keeping drag low and maintaining a low stall speed.
Why choose the Duotone Stabilizer H?
- Efficient pumping: balances pumping speed with low energy use for covering distance.
- High-aspect outline: a straight, efficient shape designed to reduce drag.
- Strong glide and projection: suited to pump-and-glide and downwind-focused foil setups.
- Low stall speed: the specialist profile helps the foil keep flying as speed drops.
Sizes and specifications
| Size | Wingspan | Aspect ratio | Recommended screws |
|---|---|---|---|
| 125 cm² | 33 cm | 8.5 | 2 × M6 × 16 mm |
| 145 cm² | 35 cm | 8.4 | 2 × M6 × 16 mm |
| 165 cm² | 37 cm | 8.4 | 2 × M6 × 16 mm |
| 185 cm² | 39 cm | 8.3 | 2 × M6 × 16 mm |
| 210 cm² | 42 cm | 8.3 | 2 × M6 × 16 mm |
| 235 cm² | 44 cm | 8.3 | 2 × M6 × 16 mm |
Duotone specifies a 10 Nm tightening torque for these mounting screws. Follow the current Duotone assembly guidance for your complete foil setup.
Which Stabilizer H size should I choose?
Smaller stabilizers generally suit faster, more responsive setups and experienced riders, while larger sizes provide more support at lower speed. The best match depends on your front wing, rider weight and intended use.
For reference, Duotone pairs the Glide 2.0 SLS 750 with H 165, 900 with H 185, 1100 with H 210 and 1350 with H 235. If you are unsure, contact Board-Worx before ordering and we will help check compatibility.
Compatibility
The Stabilizer H is designed for compatible Duotone foil components and is used across pump-, glide- and downwind-oriented setups, including selected Amp 2.0 and Glide 2.0 combinations. Check the recommended stabilizer for your exact Duotone front wing rather than choosing by area alone.
Frequently asked questions
Is the Stabilizer H aimed at beginners?
It is primarily designed for riders prioritising glide and pumping efficiency. A larger size can provide more low-speed support, but the ideal choice still depends on the front wing and rider.
Does a smaller H stabilizer make the foil faster?
In general, a smaller stabilizer reduces support and can make a setup feel quicker and more responsive. It normally requires better control and a suitable front-wing pairing.
Can Board-Worx help me choose a size?
Yes. Tell us your front wing, mast, rider weight and intended use and we can help identify the most suitable option.
Browse our wing foil range and Duotone products, or read the official Duotone Stabilizer H information.
