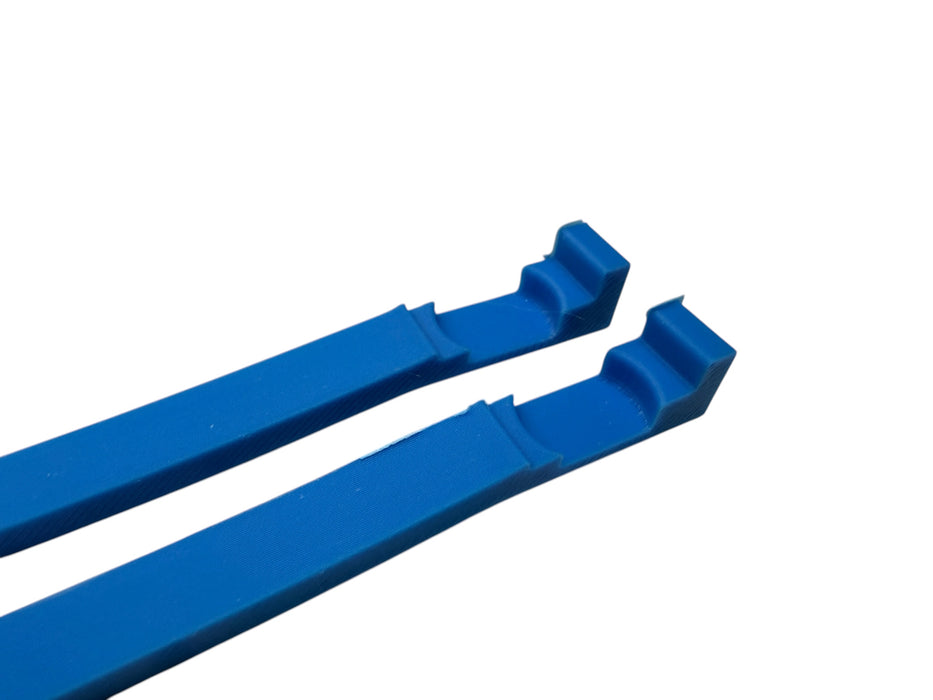

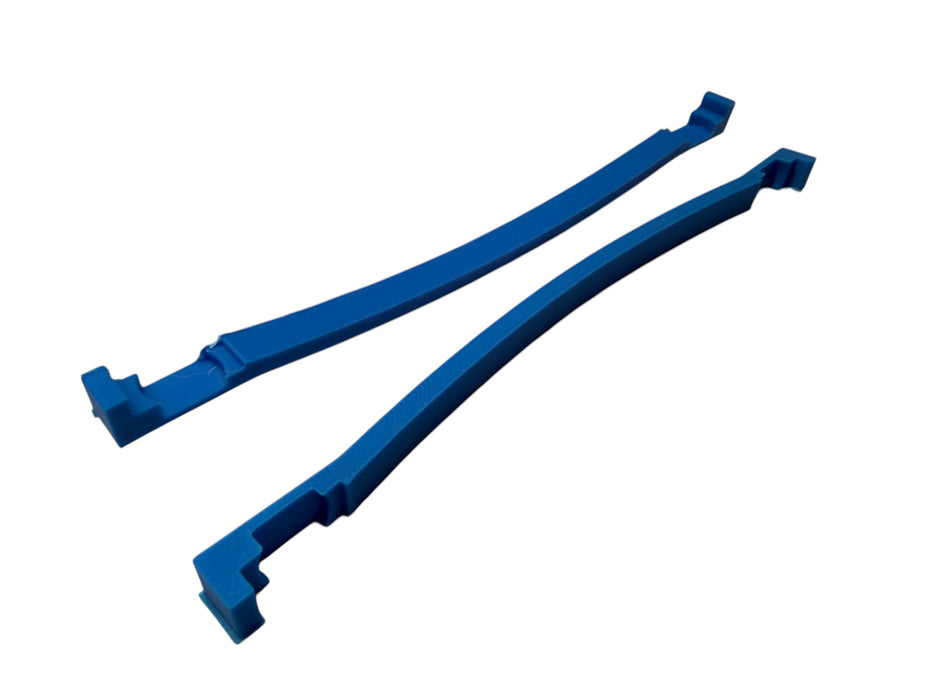

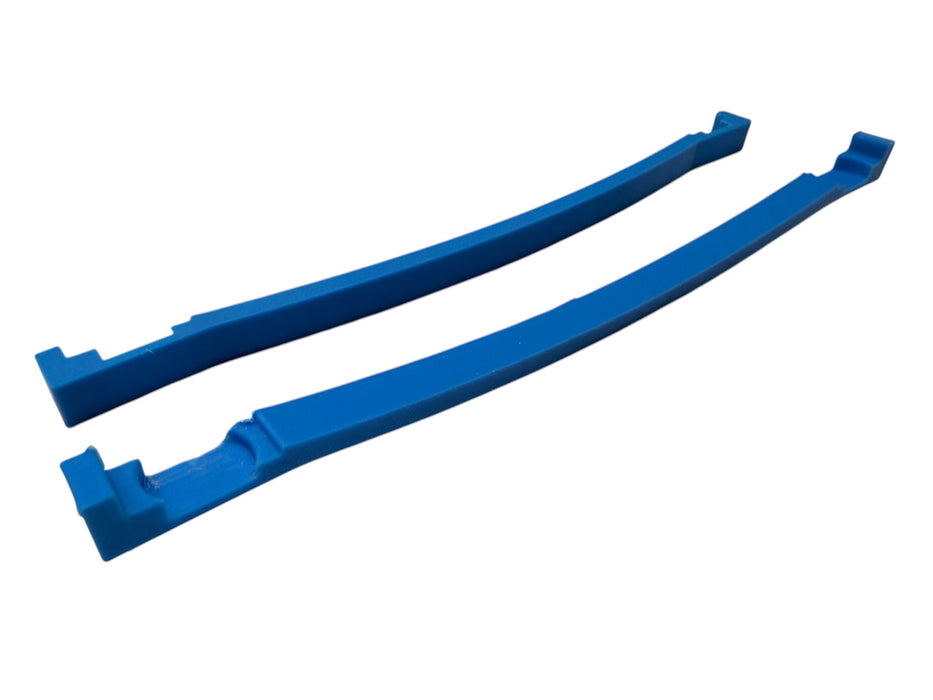

WingFoil kite Foil track sledge 9mm euro box T-Nut holders Pair
Wing foil track nut sled for faster foil setup and easier mast fitting. This 3D printed foil track nut sled keeps your T-nuts aligned inside your board’s twin tracks, so your mast plate bolts line up quickly every time.
It is a simple but very useful wing foil accessory. Instead of chasing loose foil track nuts around the board box, the sled holds them in the correct position. Remove your foil, transport your board, and refit your mast with less hassle at the beach.
Wing Foil Track Nut Sled – 160mm and 165mm Sizes
This wing foil track nut sled is available in two mast plate spacing options:
- 160mm track nut sled – for mast plates with 160mm front-to-back bolt spacing.
- 165mm track nut sled – for mast plates with 165mm front-to-back bolt spacing.
Most modern wing foil boards use a twin track box with approximately 90mm side-to-side track spacing. The 160mm or 165mm measurement refers to the distance between the front and rear mast plate bolt holes, measured from centre to centre.
Foil Brand Mast Plate Size Guide
Use this guide to choose the correct wing foil track nut sled. Always measure your own mast plate before ordering, as some brands use more than one bolt pattern across different models and years.
| Foil Brand / System | Known or Suggested Mast Plate Spacing | Recommended Sled Size |
|---|---|---|
| Duotone / Fanatic | 160-165-165 x 90mm | 160mm sled year dependent |
| Code Foils | Believed to be 160 x 90mm on many mast plates | 160mm sled – please measure to confirm |
| F-ONE older / standard top plate | 160 x 90mm | 160mm sled |
| F-ONE latest top plate | 160 x 90mm and 165 x 90mm options | Measure your plate before ordering |
| North Sonar | 165 x 90mm | 165mm sled |
| Naish | 165 x 90mm | 165mm sled |
| GoFoil | 165 x 90mm | 165mm sled |
| Takuma | 165 x 90mm | 165mm sled |
| Slingshot | Often 165 x 90mm, but some systems may differ | 165mm sled if your mast plate measures 165mm |
| Axis | Some 165 x 90mm plates, but other sizes also exist | 165mm sled only if your plate measures 165mm |
| MFC | Often listed around 150 x 90mm | Not currently available |
| NP / NeilPryde | Often listed around 140 x 90mm | Not currently available |
How to Measure Your Foil Mast Plate
To choose the right wing foil track nut sled, measure from the centre of the front mast plate bolt hole to the centre of the rear mast plate bolt hole. If the measurement is 160mm, choose the 160mm sled. If it is 165mm, choose the 165mm sled.
Do not measure the full length of the mast base plate. The important measurement is the centre-to-centre distance between the bolt holes that run from nose to tail.
Why Use a Wing Foil Track Nut Sled?
- Keeps foil T-nuts aligned inside the board tracks
- Makes mast fitting quicker and easier
- Helps stop track nuts sliding out of position
- Ideal when removing your foil for transport
- Useful for wing foil, surf foil, SUP foil, downwind foil and prone foil setups
- Available in 160mm and 165mm mast plate spacing
This 3D printed wing foil track nut sled is lightweight, practical and easy to use. It is ideal for riders who regularly remove their foil, travel with their board, or want a quicker setup before getting on the water.
